Material: carbon steel, cast iron grate,ceramic glass(NEG or Schott brand), high temperature resistant paint(Forest brand)
Firebox material: carbon steel,firebrick panels
Primary air: Yes
Secondary air: Yes
Ashpan: yes
Glass: 3-sided

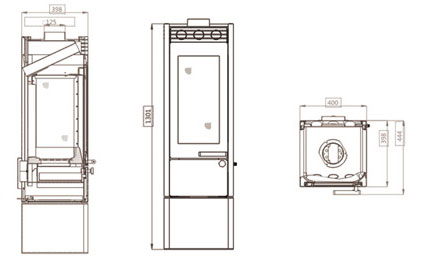

Height*Width*Depth |
1301*398*400mm |
Nominal heat output (kw) |
4kw |
Maximum efficiency (%) |
65% |
CO emissions@ 13% O2 |
0.435% |
Room heating capacity |
40-60㎡ |
Weight (kg) |
122kg |
Flue outlet (MM) |
126 |
Flue gas temperature |
345℃ |
Wood dimension |
φ60*275mm |
