Material: carbon steel, cast iron grate, ceramic glass(NEG or Schott brand), high temperature resistant paint(Forest brand)
Firebox material: carbon steel, vermiculite panels
Primary air: Yes
Secondary air: Yes
Ashpan: yes
Shape: Round

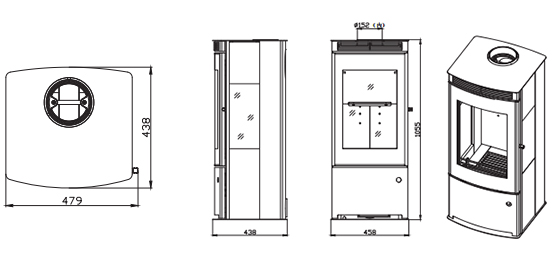

Height*Width*Depth |
1058*458*438mm |
Nominal heat output (kw) |
8.6kw |
Thermal efficiency (%) |
76.2% |
Dust emission(mg/nm³) |
37 |
CO emissions@ 13% O2(%) |
0.06% |
Room heating capacity |
50-150㎡ |
Weight (kg) |
125kg |
Flue pipe outlet (MM) |
150mm |
